Leica DISTO X6-R - Automatic Rotating Display

Leica DISTO X6-R - measure up to 250m outdoors

Leica DISTO X6-R - Measure with the Dist Key

Leica DISTO X6-R - measure with a gesture

Leica DISTO X6-R - on FTA360 Leica TRI175

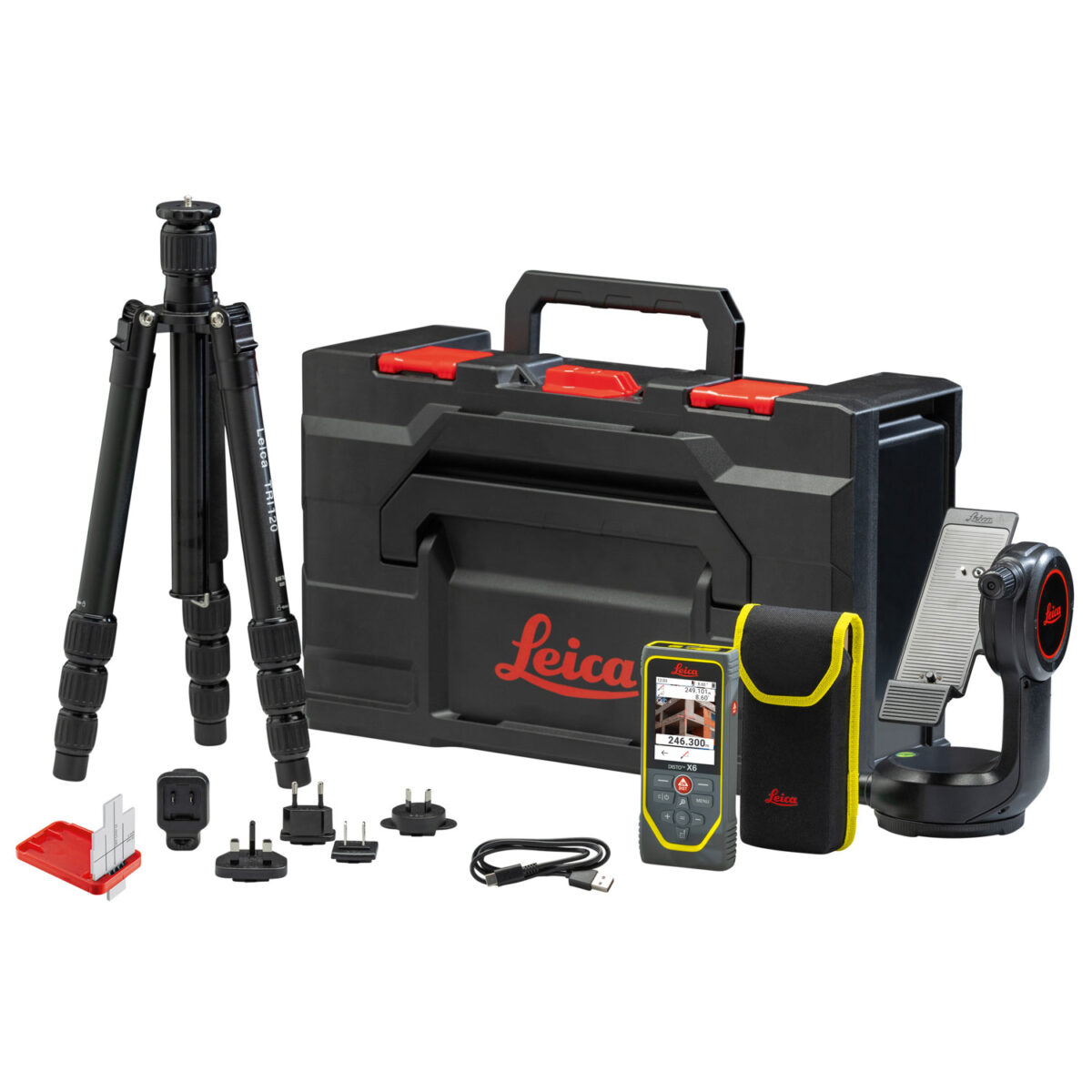

Leica DISTO X6 R P2P Package

Name: Leica DISTO X6 R P2P Package
Brand: Leica DISTO
SKU: 950878
Price: 1260.00 GBP
Availability: InStock

£1,260.00 Inc. VAT: £1,512.00

SKU: 950878

Enable P2P Technology by combining the DISTO X6 R and the Leica DST 360-X Adapter. Meaning distances between any two points or complex inaccessible areas can be measured from a safe location. Everything you need packed up in a handy hard case.

Download the results to organised DXF files and further processed in any CAD software. Use the FREE DISTO Plan app for visualisation of the data directly on site, allowing you to identify if any measurement points are missing. Together, these support the digitalisation process, streamline workflows, reduce costs, and minimise errors.

Supplied with:

Leica Disto X6 R Laser Measure
DISTO pouch | USB Cable & Hand loop
DST 360-X Adapter
TRI 120 Tripod | GZM 3 Target Plate
Calibration Certificate Silver

Compare

SKU: 950878 Categories: Laser Distance Measures, Leica DISTO, Leica DISTO X6 R, Leica Laser Measures, Outdoor Laser Measures Tags: Laser Distance Meter, Leica 3D Measure, Leica DISTO X6, Leica Laser Measure, Outdoor Laser Measure

Description

DISTO X6 R Extremely robust outdoor laser distance meter with 3D capability

Designed with the highest level of durability, IP65 – Waterproof, Dustproof, impact resistant touch screen and a 2 metre durability drop test winner.
A new crystal-clear, touch screen display, it is perfect for using the digital point finder to target objects up to 250 metres outside.

The high speed touch screen, enables the use to swipe, zoom, select and trigger measurements all from the screen. In addition 2 New methods to trigger measurements have been added to the Disto X6. The easy to use side button and automatic rotating display and the new Gesture measure method, simply move your hand across the laser and the measurement is triggered – simple and accurate.

Packed with innovative functions: picture width measuring, indirect heights, ground profiling and height calculations, room scan.

Bluetooth enabled – link to the free Leica Disto Plan app, transfer measurements into excel or any application running on your tablet PC.

Add the P2P adapter, now you can measure anything, anywhere in 3D. Capture DXF files and send directly to CAD.

X6 R KEY FEATURES

Outdoor laser | Digital pointfinder
Range: 250m | Accuracy: ± 1 mm
Colour touchscreen with Digital Pointfinder 4x zoom
Robust according to IP65 and drop tested from 2 meters
Indirect height measurement, 360° tilt sensor, Measuring units: m, ft, in
Trigger measurements with a gesture – for max accuracy
Bluetooth® Smart, FREE App Leica DISTO™ sketch
Area & volume function | Addition/subtraction
Smart horizontal mode | Pythagoras function
Stake-out function | Height tracking
Inclination tracking | Sloped objects | Trapezium
Distance measurement | Min/max measurement

DST 360 X

Tripod adapter with fine-adjustment for easy and precise targeting. Simply toggle the vertical and horizontal adjustment knobs to set the laser dot exactly where you want it.

TRI 120

A professional quality tripod designed specifically for use with the Leica Lino laser levels and Leica DISTO laser measures.

Extension length is 0.37 to 1.16 m
Fits all tripod adapters of Leica DISTO models
180° foldable legs
Twist locks for stability

Leica DISTO X6 R - FEATURES

Measure with a gesture

No need to touch the DISTO: Carefully place the laser dot or crosshairs of the Pointfinder Camera on target & simply wave a hand in front of the device to briefly interrupt the beam. When the DISTO senses this pulse, it triggers the measurement.

Measure outdoors up to 250m

At 250m (820ft) the range of the DISTO X6 exceeds the ability of the human eye to see the laser point, which makes it hard to take a measurement. The solution is a 4x zoom Digital Pointfinder camera. Place the crosshairs on your measuring point and measure with confidence.

Job Site Tough

Just because it works with CAD doesn’t mean the X6 can’t take a hit. This DISTO is both smart & tough, drop tested 2m. Wash it off with a hose: This with IP65 DISTO is protected from water & dust.

Leica DISTO Plan App

Document Measurements Digitally

FIND OUT MORE >>

Leica DISTO X6 R Video Tutorials

Getting to know your DISTO X6 R

DISTO X6-R – How to measure Point to Point

DISTO X6-R – How to measure Point to Line

DISTO X6 R – How to measure 3D DXF data

DISTO X6 R – How to measure 3D & relocate

How to use the Bluetooth keyboard mode on Leica DISTO D5 or X6 with Android & Excel

Leica DISTO: How to Measure Outdoors

How to use the digital pointfinder

Indoors or generally in favourable lighting conditions, the red laser dot is very clearly visible so that the object can be easily targeted. In bright outdoor areas, however, or even in bright sunlight, the laser dot is no longer visible. The laser distance meter can still measure without any problems. To aim, however, you now need the Pointfinder – a camera that shows you the target exactly in the crosshairs on the display.

How to use the P2P function using the DISTO X6 and the DISTO Plan App

This playlist covers the following applications:

01 What is the P2P Technology?

02 How does the simple P2P measurement work

03 How does the levelled P2P Measurement work

04 How does the P2L Measurement work

05 How to capture DXF data on a DISTO

06 How does the Smart Area Function work

07 Connect and start with DISTO Plan and P2P

Click on the links below to view individual applications

08 X6 How to use Measure Plan

09 DISTO Plan App and Measure Facade

10 DISTO Plan App and Measure 3D

11 DISTO Plan App and Relocation

12 DISTO Plan Earthworks function

13 DISTO Plan Data Export

Leica DISTO X6 R Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Leica DISTO & Leica Lino Family Brochure

Leica DISTO X6 R – Data Sheet

Leica DISTO X6 R – Quick Start Guide

Leica DISTO X6 R – User Manual

How to use Measure Plan

Try Now for 1 Month Free of Charge

Take the opportunity to benefit from the full range of functions of the DISTO Plan app for one month free of charge, including the following:

Measure 3D
Measure Plan
Measure Facade
Earthworks
DWG, DXF & PDF Pro export

Download the Leica DISTO Plan App:

Shipping & Delivery

SHIPPING & DELIVERY

Orders for goods which are shown on the web site with 'next day' delivery and that are received before 4.00pm Monday to Friday will be dispatched the same day, subject to the goods being in stock.

The company may use any method of delivery available to it. The company will endeavour to meet delivery targets, but can accept no liability of any kind for late delivery or non-delivery.

Royal Mail First Class Post may be used for some deliveries of smaller or lower value items, and although over 90% of first class deliveries arrive next day, where Royal Mail is used we can not guarantee next day receipt. All delivery prices and lead times quoted on the web site are for mainland UK only and when delivered between 9.00am and 5.30pm Monday to Friday.

ADDITIONAL DETAILS

Extra charges will apply for premium deliveries. Orders which include several products with varying lead times will be dispatched when all parts of the order are in stock unless otherwise arranged. Delivery rates are stated per item (ex VAT) for mainland UK during business hours. Delivery charges and free delivery offers apply to mainland UK only.

Excluded areas include the Highlands and Islands of Scotland, Northern Ireland, Isles of Scilly, Isle of Man and the Channel Islands. For deliveries to these destinations, and to other European destinations including the Republic of Ireland, please contact us for a quotation. For orders below £100 (ex VAT) delivery is charged at £4.95 (ex VAT).

JOIN OUR FREE WORKSHOP

HOW TO USE THE P2P FUNCTION

How to use the P2P function using the DISTO X6 and the DISTO Plan App

This playlist covers the following applications:

01 What is the P2P Technology?

02 How does the simple P2P measurement work

03 How does the levelled P2P Measurement work

04 How does the P2L Measurement work

05 How to capture DXF data on a DISTO

06 How does the Smart Area Function work

07 Connect and start with DISTO Plan and P2P

Click on the links below to view individual applications

08 X6 How to use Measure Plan

09 DISTO Plan App and Measure Facade

10 DISTO Plan App and Measure 3D

11 DISTO Plan App and Relocation

12 DISTO Plan Earthworks function

13 DISTO Plan Data Export

SPECIFICATION

SPECIFICATIONS
Accuracy with favourable conditions *	1.0 mm / 1/16″ ***
Accuracy with unfavourable conditions **	2.0 mm / 1/8″ ***
Range with favourable conditions *	0.05 – 250 m / 0.07 – 820 ft ***
Range with unfavourable conditions **	0.05 – 150 m / 0.07 – 500 ft ***
Smallest unit displayed	Yes
Laser	class 2, 635 nm, <1 mW
Digital Pointfinder with 4-fold zoom	Yes
Tilt measuring range ****	± 0.2°
ø laser point \| at distances	6 / 30 / 60 mm \| 10 / 50 / 100 m
Protection class	IP65 (dust tight and jet water protected) drop tested from 2 m height
Auto. laser switch off after	90 s
Auto. power switch off after	180 s
Memory	up to 300 reports
Bluetooth® Smart	Bluetooth® v5.0
Range of Bluetooth® Smart	up to 10 m
Battery durability (Li-Ion 2 000 mAh)	up to 4000 measurements up to 8 hours operation time
Dimension (H x D x W)	154 x 68 x 25 mm
Weight (with batteries) 2	30 g
Temperature range storage \| operation	-25 to 70 °C \| -10 to 50 °C

* favourable conditions: white and diffuse reflecting target (white painted wall), low background illumination and moderate temperatures.

*
* unfavourable conditions: targets with lower or higher reflectivity or high background illumination or temperatures at the upper or lower end of the specified temperature range.

*
** Tolerances apply from 0.05 m to 10 m with a confidence level of 95%. Above 5 m the tolerance may deteriorate according to the values given in the manual of the unit.

*
*** after user calibration. Additional angle related deviation are according to the values given in the manual of the unit.
