Leica BLK3D Imager

SKU: 869073

What’s included:
  • BLK3D Lithium-Ion Battery
  • BLK3D Power adapter with USB-C cable
  • BLK3D Quick Guide customer information booklet
  • Microfiber cloth |  Neck strap | Calibration certificate
  • 1x 1 yr BLK3D Mobile Introduction,
    including Sketch & Document 875427
  • 1x 1 yr BLK3D Desktop Introduction
    license, including Organiser, Measure,
    working with plans, 3D Model 875428
CALL FOR PRICE:
0800 292 2188
FREEPHONE
Description

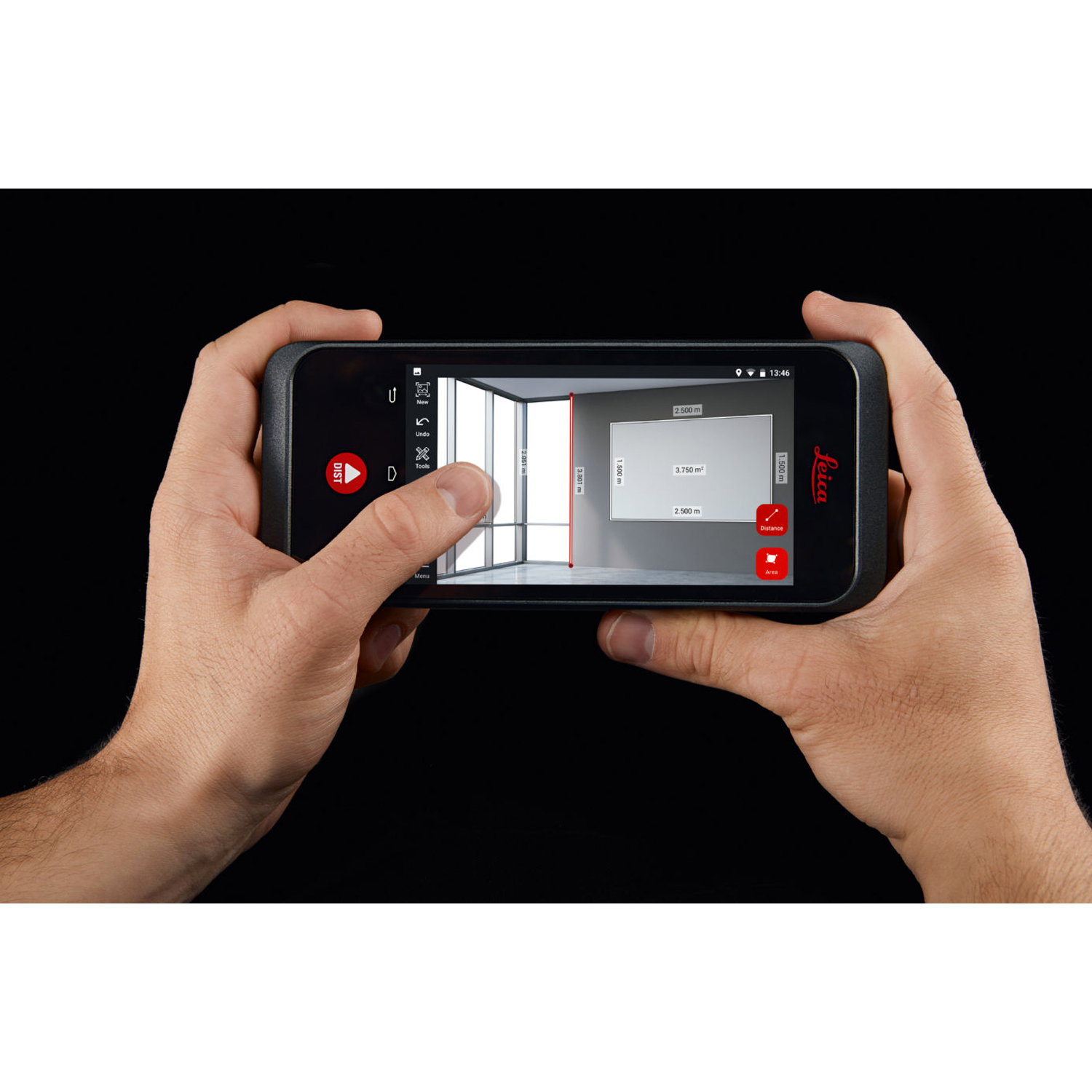

Real-time, professional, in-picture 3D measurement

The Leica BLK3D is a real-time, in-picture 3D measurement solution. By combining measurement sensors, software, and on-device edge data processing capabilities, the Leica BLK3D makes possible in-picture measurements with professional-grade accuracy in real-time. Every image captured is a complete and precise 3D measurement record.

Its edge computing capabilities eliminate the need for network connections and cloud services, ensuring professionals can make faster decisions within their daily workflows – whether measuring inaccessible locations, creating floor plans, estimating building installations, documenting construction site progress or creating measurable, as-built documentation.

Introducing the BLK3D

A compact 3D handheld imager that improves productivity by enabling immediate and precise 3D measurements from any image it captures.

Leica BLK3D Imager - features at a glance

KEY FEATURES

  • Take a picture. Measure anything!
  • Share images and measurements in multiple formats.
  • Real-time, in picture hand held 3D measurement.
  • 64 GB (equals 14000 single-shot or 5000 multi-shot 3D images)
  • Create floorplans and import existing ones.
  • Store your measurable images on the device and on desktop Surveyors Surveyors.
  • With the BLK3D Software you can share images and measurements with colleagues and customers in multiple formats.
  • EDM accuracy of 1mm
  • 2D in-picture accuracy of +/- 3mm
  • 3D in-picture accuracy of +/- 6mm
  • Tilt measurement range: 360°
  • Zoom (magnification) 1×, 2×, 4×, 8×
  • Software options: BLK3D Mobile (included) | Sketch & Document Option (optional)
  • Screen: 5.0”, HD 720×1280 LCD multi-touch screen
  • Stereo camera: pixels: 2 x 10 MP, field of view: 80°, focal length: 4.0 mm, aperture: F3.0
  • EDM camera: pixels: 2 MP, field of view: 14°

SOFTWARE OPTIONS

The BLK3D portfolio consists of the hardware (BLK3D Imager), as well as two software platforms: mobile & desktop.

BLK3D Mobile

The BLK3D Mobile (or field) software runs on-board the BLK3D imager. It is a proprietary app that runs exclusively on BLK3D hardware, which is why it is not available in the Google Play store. However, the app functionality and user interface will be familiar to smartphone users.

BLK3D Desktop

The BLK3D Desktop software is an extension of the mobile functionality which runs on Windows laptops and desktops.

Minimum system requirements:
  • Windows 10 or 8.1 with 64-bit
  • 6 GB RAM available
  • Mouse with scroll wheel for efficient zoom & point selection
Leica BLK3D - Sketch & Document:

Sketch & Document:

Create floorplans and attach measurable images to them. Useful for documenting construction progress over time.

Leica BLK3D Laser

Integrated laser

Use the integrated Laser EDM to add highly accurate measurements to 3D images, or to take stand-alone measurements.

Leica BLK3D - Reality capture

Reality Capture

Capture 3D measurable images.

Leica BLK3D Organiser

Organiser:

Organize projects.

Leica BLK3D - New Project

New project:

Group 3D images and floorplans as a Project.

Leica BLK3D Video Tutorials

Leica BLK3D – How to Create Measurements
Leica BLK3D – How to Capture Reality
Leica BLK3D – How to capture a 3D image
Intro to the Leica BLK3D
Using BLK3D Publisher to share measurable images
Leica BLK3D – Sketch & Document
Leica BLK3D – Smart Room Feature
Leica BLK3D – Case Study

Key Features

  • Take a picture. Measure anything. The BLK3D captures images and places precise measurements at your fingertips.
  • Share images and measurements in multiple formats.
  • Combines calibrated stereo-camera, advanced algorithms and real-time edge computing fused with leading Electronic Distance Measurement (EDM) technology.
  • Access projects. Anywhere, anytime. Measure in your image – on the handheld imager, on the desktop, on-site or in the office.
  • Create floorplans and import existing ones. Add measurable images. Document construction progress with multiple images over time.
  • The BLK3D creates images that contain precise 3D measurements.
  • Capture critical moments throughout the life of a building.„
  • Store. Organize. Share. Store your measurable images on the device and on desktop. Organize your projects by tagging measurable images with searchable keywords for easy recall and share them in multiple formats.
Features Popular with
Take a picture. Measure anything! Staircase installers
Share images and measurements in multiple formats. Kitchen fitters
Real-time, in picture hand held 3D measurement. Glass partitions
64 GB (equals 14000 single-shot or 5000 multi-shot 3D images) Shop fitters
Create floorplans and import existing ones. Architects
Store your measurable images on the device and on desktop Surveyors Surveyors. Surveyors
With the BLK3D Software you can share images and measurements with colleagues and customers in multiple formats. Ship builders
Tilt measurement range: 360°
Zoom (magnification) 1×, 2×, 4×, 8×
Software options: BLK3D Mobile (included) | Sketch & Document Option (optional)
Screen: 5.0”, HD 720×1280 LCD multi-touch screen
Stereo camera: pixels: 2 x 10 MP, field of view: 80°, focal length: 4.0 mm, aperture: F3.0
EDM camera: pixels: 2 MP, field of view: 14°

Leica BLK3D Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

About brand

Revolutionising the world of measurement and survey for nearly 200 years, Leica Geosystems creates complete solutions for professionals across the planet.

Leica Geosystems: When it has to be right

Leica DISTO D2 BT

Original price was: £149.00.Current price is: £139.00. Inc. VAT: £166.80

Shipping & Delivery

SHIPPING & DELIVERY

Orders for goods which are shown on the web site with 'next day' delivery and that are received before 4.00pm Monday to Friday will be dispatched the same day, subject to the goods being in stock.

The company may use any method of delivery available to it. The company will endeavour to meet delivery targets, but can accept no liability of any kind for late delivery or non-delivery.

Royal Mail First Class Post may be used for some deliveries of smaller or lower value items, and although over 90% of first class deliveries arrive next day, where Royal Mail is used we can not guarantee next day receipt. All delivery prices and lead times quoted on the web site are for mainland UK only and when delivered between 9.00am and 5.30pm Monday to Friday.

FREE UK Delivery

ADDITIONAL DETAILS

Extra charges will apply for premium deliveries. Orders which include several products with varying lead times will be dispatched when all parts of the order are in stock unless otherwise arranged. Delivery rates are stated per item (ex VAT) for mainland UK during business hours. Delivery charges and free delivery offers apply to mainland UK only.

Excluded areas include the Highlands and Islands of Scotland, Northern Ireland, Isles of Scilly, Isle of Man and the Channel Islands. For deliveries to these destinations, and to other European destinations including the Republic of Ireland, please contact us for a quotation. For orders below £100 (ex VAT) delivery is charged at £4.95 (ex VAT).

Specifications

GENERAL SPECIFICATIONS

Dimensions (H x W x D) 180.6 x 77.6 x 27.1 mm (7.11 x 3.06 x 1.07 in)
Weight (with rechargeable battery) 480 g (17 oz)
Temperature range Storage: -25 to 60 °C (-13 to 140 °F) Operation: -10 to 50 °C (14 to 122 °F) Charging: 0 to 40 °C (32 to 104 °F)
Tripod adapter Supports 1/4-20 UNC screw adapters
