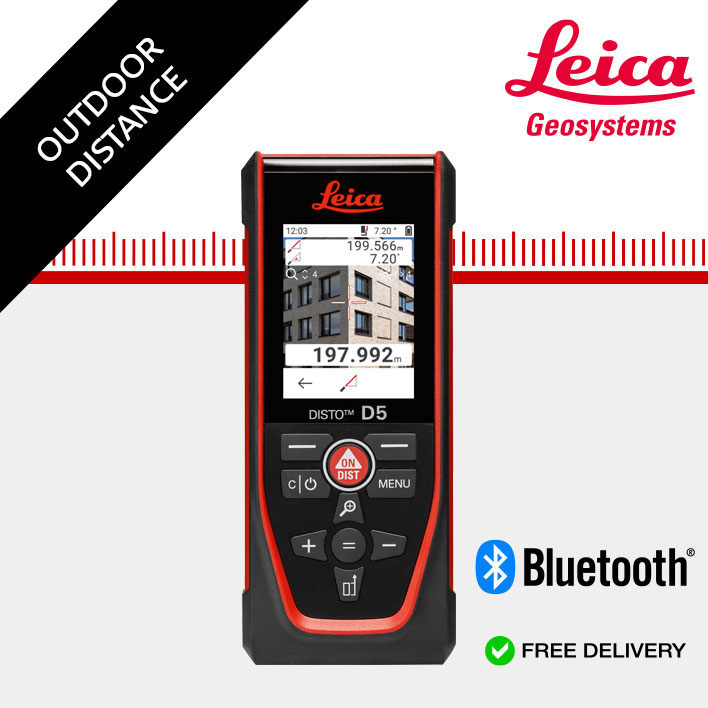

Outdoor laser distance measuring made easy

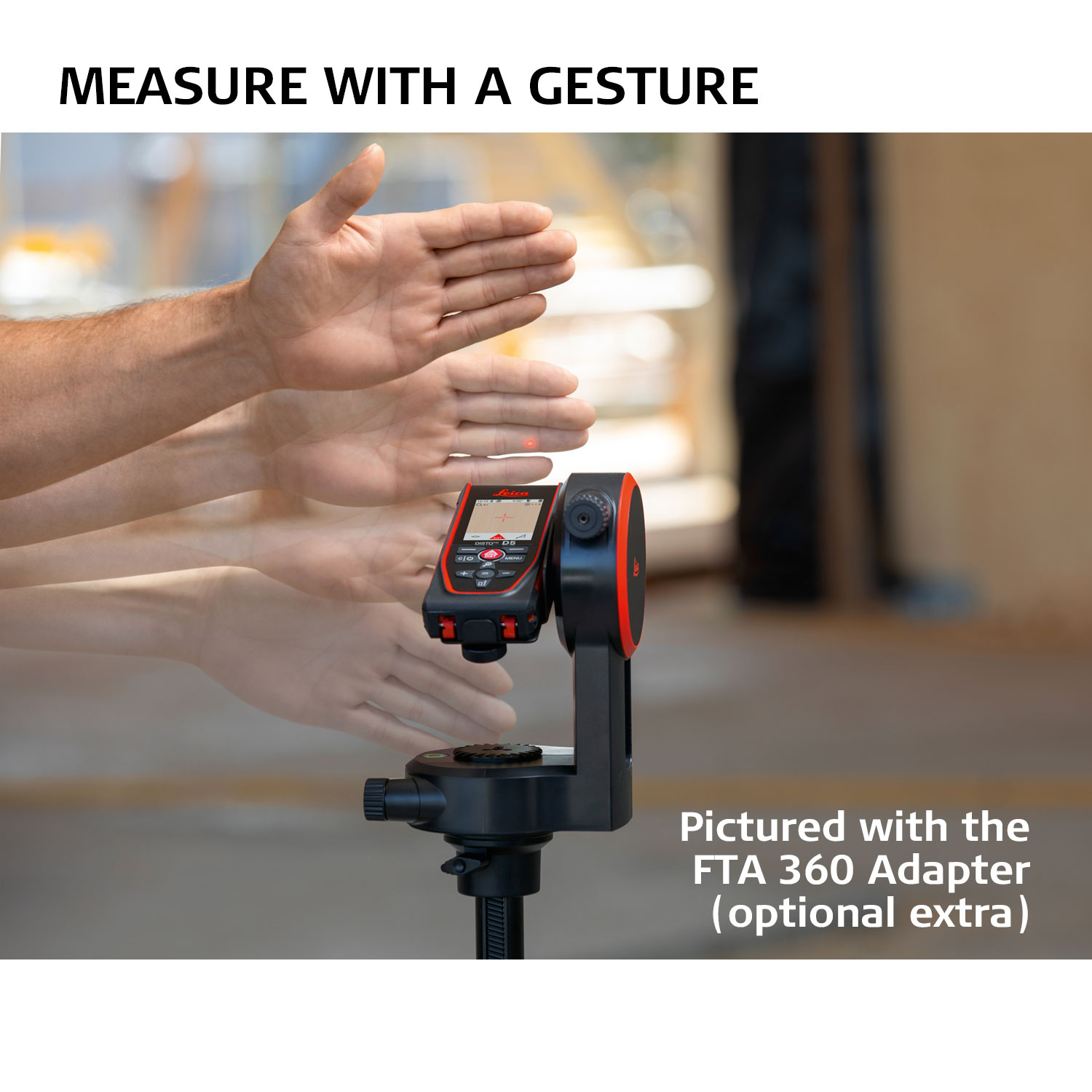

With the digital on screen Pointfinder the Leica DISTO D5 R makes measuring outside, even in bright sunshine and at very long distances, easy. Both the target and the measurement results can be seen very clearly on the large IPS display(iPhone quality). Avoid moving the device for accuracy when measuring using the new Gesture measure feature, move hand across laser beam and measurement is triggered…. How cool is that!
So many features to help with all manner of measuring applications, Smart Horizontal Mode, height tracking, profile or angle measurements. This means that any measurement situation on the construction site can be solved quickly and efficiently.
Measured data can then be Blue-toothed to the DISTO Plan app or individual templates, e.g. in Excel, email or any application to support an efficient and error-free digital workflow.
KEY FEATURES
- Outdoor laser | Digital pointfinder
- Range: 200m | Accuracy: ± 1 mm
- Colour display with Digital Pointfinder 4x zoom
- Multi-functional, IP54 (dust & splash water protected)
- 360° tilt sensor
- Trigger measurements with a gesture – for max accuracy
- Indirect height measurement, 360° tilt sensor
- Bluetooth® Smart, FREE App Leica DISTO™ sketch
- Area & volume function | Addition/subtraction
- Smart horizontal mode
READY FOR P2P MEASUREMENTS?
The Leica DISTO D5 R can be extended with the FTA 360 tripod adapter. This easy and precise targeting to capture data for further processing in the DISTO Plan app.
Leica DISTO D5 R Pro Pack
Use the DISTO D5 R Pro Pack for highly accurate interior & exterior measurements. In addition to the D5 R the Pro Pack INCLUDES:
Leica DISTO D5 R Video Tutorials
Getting to know your DISTO D5 R
DISTO D5 R – How to measure long distances
Leica DISTO: How to Measure Outdoors
Key Features
- Range up to 200 m
- ± 1.0 mm accuracy, 0.1 mm resolution
- Measuring slopes
- Smart Horizontal Mode
- Fast start-up time
- Foldable end-piece with automatic detection
- Bright and clear 2.4” IPS display with scratch-proof lens
- Trigger measurements with gestures
- Memory for 50 measurements
- Li-Ion rechargeable battery
- USB-C charging
- Keyboard Mode, simulating data-transfer via Bluetooth®
- Bluetooth® 5.0 Technology for error-free data transfer
- Works with DISTO Plan App (iOS and Android) and DISTO transfer (Windows)
Specifications
Accuracy with favourable conditions * | 1.0 mm / 1/16″ *** |
Accuracy with unfavourable conditions ** | 2.0 mm / 1/8″ *** |
Range with favourable conditions * | 0.05 – 200 m / 0.07 – 660 ft *** |
Range with unfavourable conditions ** | 0.05 – 120 m / 0.07 – 400 ft *** |
Smallest unit displayed | 0.1 mm / 1/32 in |
X-Range Power Technology | yes |
Laser Class 2 | 635 nm, <1 mW |
Digital Pointfinder with 4-fold zoom | yes |
Tilt measuring range **** | 360° |
Tilt measuring tolerance | ± 0.2° |
ø laser point | at distances | 6 / 30 / 60 mm | 10 / 50 / 100 m |
Protection class | IP54 (dust- and splash water protected) |
Auto. laser switch off after | 90 s |
Auto. power switch off after | 180 s |
Bluetooth® Smart | Bluetooth® v5.0 |
Range of Bluetooth® | up to 10 m |
Battery durability (Li-Ion 2 000 mAh) | up to 5’000 measurements up to 10 hours operation time |
Dimension (H x D x W) | 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 in |
Weight (with batteries) | 180 g / 6.35 oz |
Temperature range storage | operation | -25 to 70 °C / -13 to 158 °F | -10 to 50 °C / 14 to 122 °F |
Leica DISTO D5 R Documentation
View and download this product’s brochure, datasheet, and manual in a PDF format
