Description

It can do everything!

Stay in control – in whatever shape of room. Capture and record distances, areas, inclinations, and angles effortlessly, even for inaccessible points. Forgotten measurements and handwriting errors are things of the past. Whether in fully automatic or manual mode: you can measure complete rooms, walls, windows, structural connections or stairs – from only one station point.

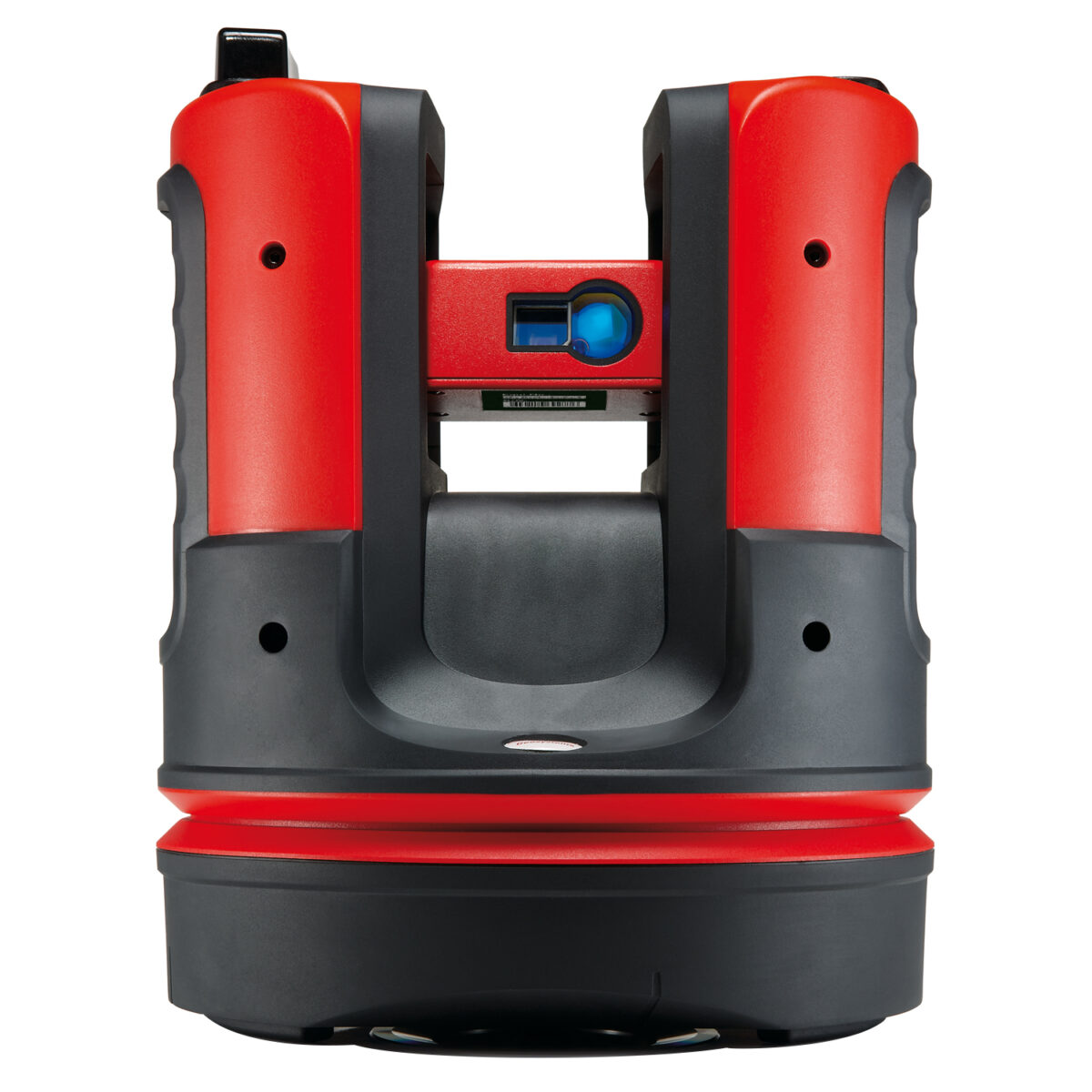

A highly accurate combination of distance and angle measurements determine the precise position of each point targeted with the integral camera and captured with the laser beam, the Leica 3D Disto can do everything. Curved surfaces, skew walls, unreachable places – measure like a professional.

Supplied with:

  • Leica 3D Disto
  • Remote control RM100
  • Power supply for 3D Disto
  • Power supply for control unit
  • 2x USB cable, USB memory stick
  • Quickstart Guide
  • Leica GZM3 target plate
  • Self-adhesive target points
  • Ruler (for measuring hidden points)
  • License for 3D Disto Software for Windows®
  • Tablet not included.
Leica 3D Disto - features at a glance
3D Disto scanning & measurement

Scanning & measurement

With the Leica 3D Disto you can measure everything from simple distances to complicated spaces on site to obtain all the data you require – either automatically or manually.

3D Disto saves time

Maximum assembly time reduction

With the optimised workflow from scanning to production you can minimise expensive assembly times and meet high optical component fitting accuracy demands with ease.

Simple data export

All recorded data is collected for each project and exported by simply pressing a button. The software automatically generates the different document formats that you need for subsequent processing. You can therefore transfer DWG or DXF files, images, calculation or text data to your computer workstation at the office as required.

With Leica 3D Software for windows

3D Disto software for Windows®

Our intuitive software for your Windows device lets you control the Leica 3D Disto and see directly what you have measured – either as a live image from the integrated camera or as a 3D model.

3D Disto software in the office

Exact planning in the office

The  Leica 3D Disto supplies high-precision data  from which you can produce projects in your customary software environment with maximum possible precision!

Simple data export with Leica software for windows

Leica 3D DISTO Video Tutorials

Leica 3D Disto – Projection function
Leica 3D Disto – Room Scan
Leica 3D Disto – Measuring Slope Area
Leica 3D Disto – Relocation
Leica 3D Disto software version 4 for Windows – whats new?

Key Features

  • Measure plan position, height & distance,in all 3 spatial axes
  • Intuitive user guidance from Assistants
  • „„Measure from one station – every visible point can be measured by targeting with the visible laser dot – without the need to walk to the target
  • As-built records of ceiling, floor and roof surfaces, volumes, inclination, falls, height differences, angles
  • Plumbing of points, parallel offsetting of axis, levelling, transferring levels from wall to wall. Forget spirit level and measuring tapes!
  • Realtime display of measurements as drawings on the screen
  • Positionally accurate representation of the measured points in the camera display„
  • Recording information in the form of standard tables, photos, DXF files, text files at the press of a button
Features Popular with
Line & surface scans Staircase installers
Measure to difficult-to-reach points, such as roof edges Kitchen fitters
Digital measurement with immediate results Glass partitions
Cable-free operation Interior designers
Digital pointfinder Shop fitters
Graphic 2D or 3D display Architects
Marking heights, plumb points & parallel lines Surveyors
Import of own data for simple staking out Ship builders
Changing the position with photo backup
Export formats: DXF (2D, 3D and overview plan), JPG, CSV & TXT
Data import & export on PC & USB stick
Remote control measurements
Pocket calculator
