Precise 90º layouts at long distances

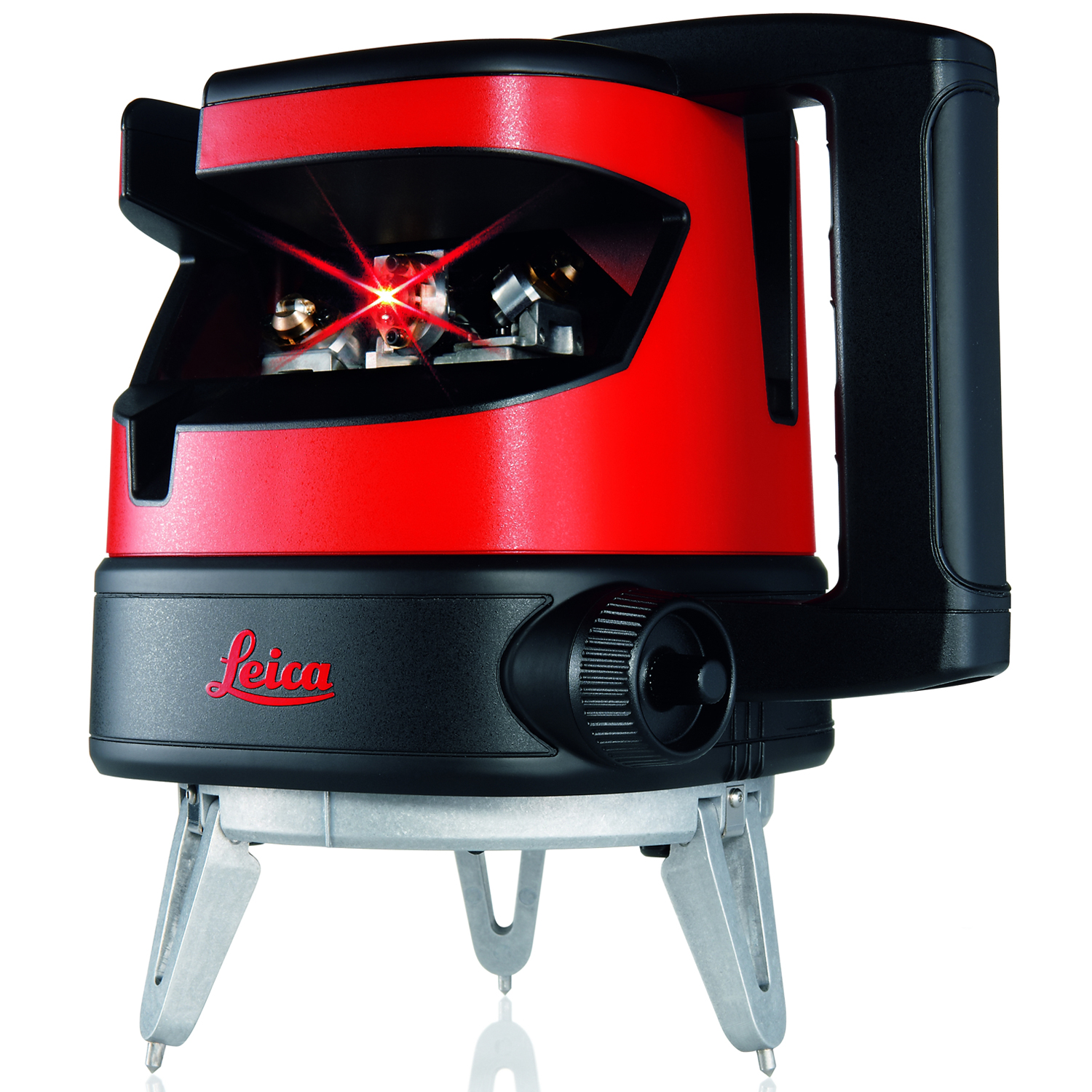

Combining the ease of use of a multi-line laser with the high accuracy and Smart Targeting function of a rotation laser. It has 4 laser lines, 1 point and a plumb down point; and features electronic self levelling and remote adjustment using the laser receiver as a remote control. For interior and exterior applications.

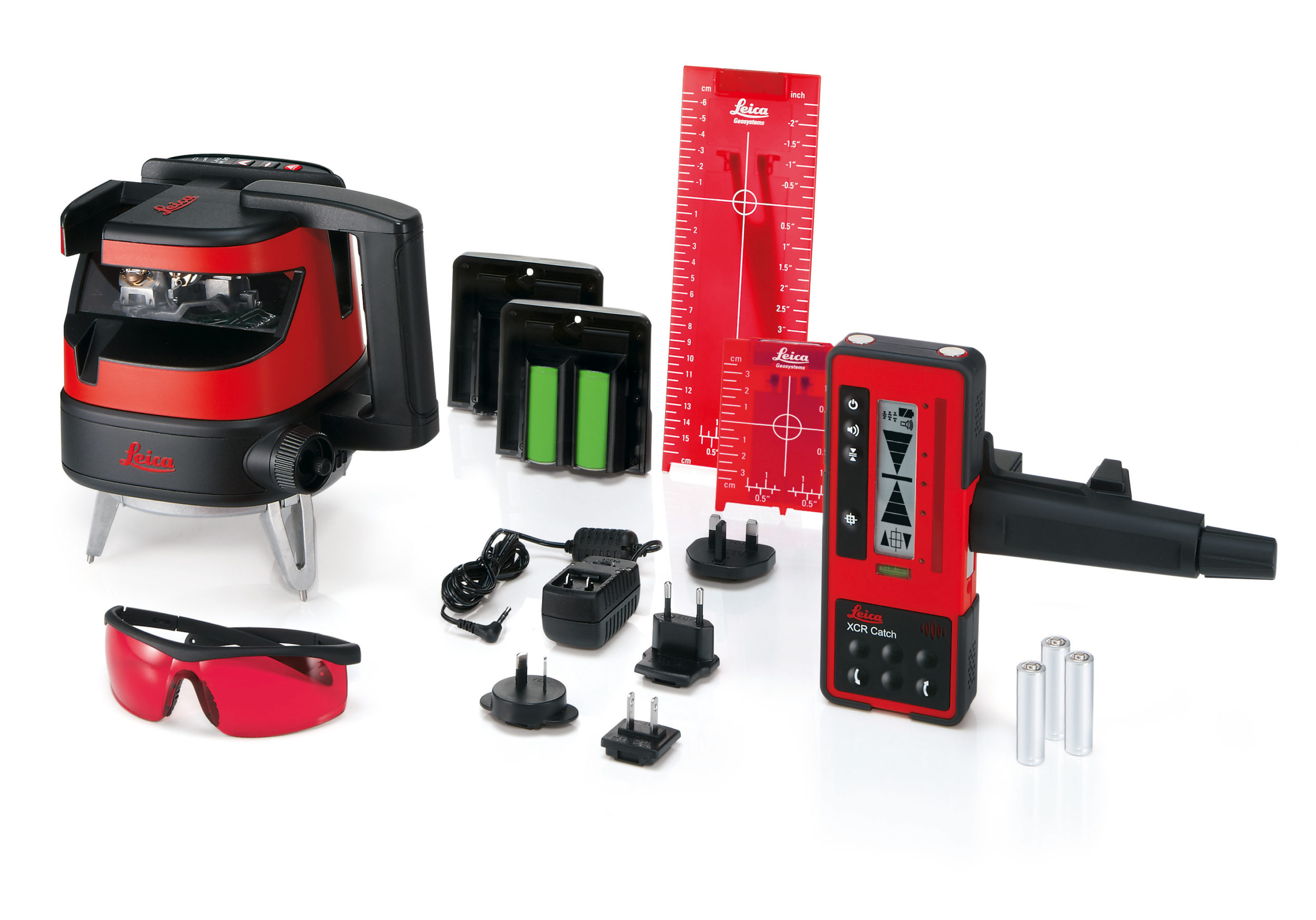

Supplied with:
One man operation
The Smart Targeting function auto-aligns the laser to the XCR Catch receiver, for highest precision up to 50m.
Precise layouts at long distances
The unique accurate electronic self-levelling automatically compensates for the tool being slightly out of level. A clear advantage, especially over long distances up to 50 metres.
Multi-purpose line laser
With 4 lines and 1 plumb point the Lino ML180 covers all areas of interior use. Can be used for smaller projects in exterior environment.
Work without any downtime
Can be used with rechargeable battery pack or alkaline batteries ensuring that it is always ready for use. Can also be operated whilst being charged.

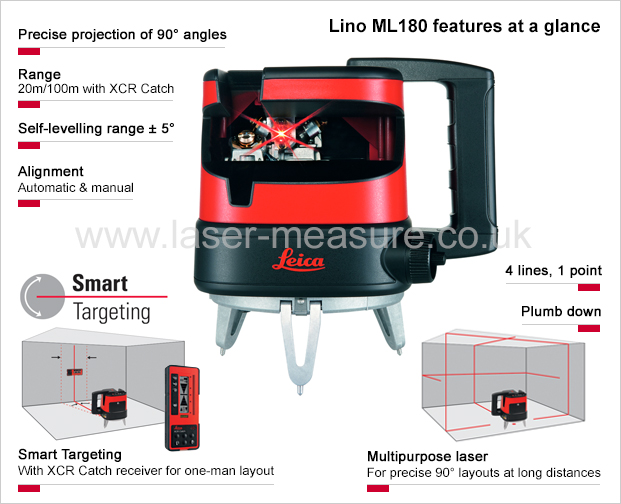

Key Features
- Quick set-up & ease of use
- One man operation
- Highly accurate
- Precise projection of 90° angles
- Multipurpose line laser for interior & exterior use
- 4 red laser lines – horizontal & vertical – exact 90° angle
- 1 red laser dot – exact 90° angle
- Accuracy: ± 0.7 mm @ 10 m
- Dust & spray water protected to IP 54
- Battery type: Lithium & Alkaline
| Features | Popular with |
|---|---|
| Range up to 20m >100m with XCR Catch detector | Electricians, HVAC |
| Levelling accuracy ± 0.7mm @ 10m | Carpenters |
| Self-levelling range ± 5 ° | Plasterers |
| Beam direction – vertical, horizontal | Decorators, painters |
| Robust, construction site proof – protection class IP 54 | |
| Battery type: Lithium & Alkaline | |
| Operating time: Lithium up to 12h |
Leica Lino ML180 Documentation
View and download this product’s brochure, datasheet, and manual in a PDF format
