The Leica DISTO™ X1 is a practical and reliable laser distance meter with an IP65 protection rating, ideal for indoor tough and dusty construction sites. NFC data transfer to the DISTO™ Plan app increases efficiency and boosts professionalism.
Back to products
Leica DISTO D2-Smart
£169.00 Inc. VAT: £202.80
Leica DISTO X1
£139.00 Inc. VAT: £166.80
SKU: 986859
The Leica DISTO X1 is a dependable laser measuring tool designed to perform in demanding indoor construction environments.
Built with a rugged housing made from rubber and glass-fiber reinforced plastic, it withstands drops of up to 2 metres, delivering lasting durability and reliable measurement accuracy even under tough job site conditions.
- Indoor range 100 m | ± 1.5 mm accuracy | Clear 4 line display
- Area & volume function | Painter function | Addition/Subtraction
- Robust according to IP65 and drop tested from 2 meters
- Bluetooth & NFC technology (new to the world of LDM)
- Works with DISTO™ FREE Apps Plan & transfer
Description
For tough interior construction sites

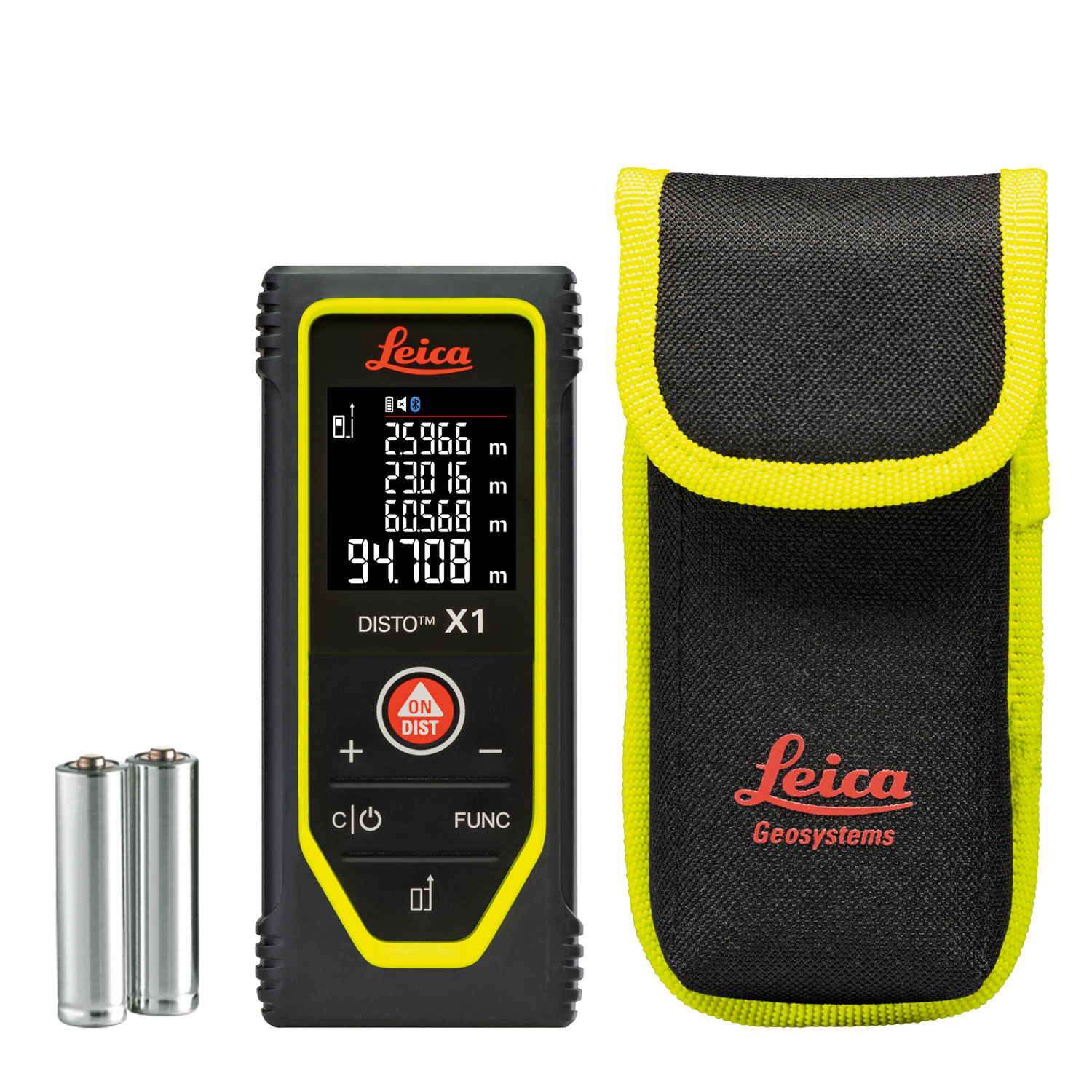

SUPPLIED WITH:
- Leica DISTO X1
- Calibration Certificate Silver
- Soft pouch
- Wrist Strap
- 2 x AAA batteries
- 3 Year Warranty

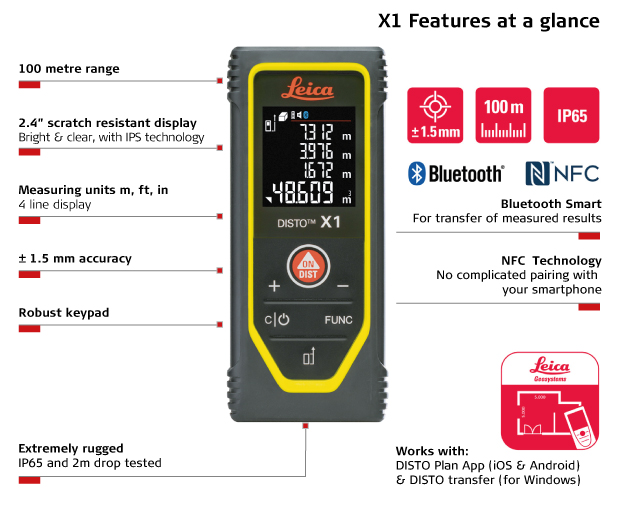

KEY FEATURES
- Range up to 100 m | ± 1.5 mm accuracy | Clear 4 line display
- Area & volume function | Painter function | Addition/Subtraction
- Robust according to IP65 and drop tested from 2 meters
- Bluetooth & NFC technology (new to the world of LDM)
- Works with DISTO™ FREE Apps Plan & transfer
Get to know the Leica DISTO X1

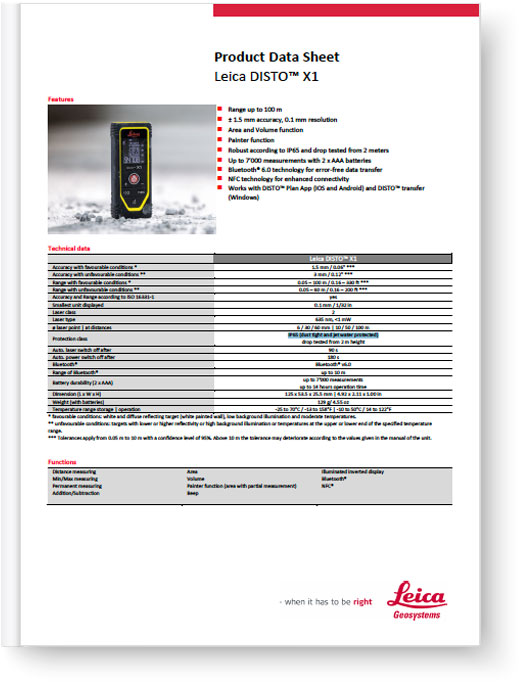

Leica DISTO X1 Documentation
View and download this product’s brochure, datasheet, and manual in a PDF format
Shipping & Delivery
SHIPPING & DELIVERY
Orders for goods which are shown on the web site with 'next day' delivery and that are received before 4.00pm Monday to Friday will be dispatched the same day, subject to the goods being in stock.
The company may use any method of delivery available to it. The company will endeavour to meet delivery targets, but can accept no liability of any kind for late delivery or non-delivery.
Royal Mail First Class Post may be used for some deliveries of smaller or lower value items, and although over 90% of first class deliveries arrive next day, where Royal Mail is used we can not guarantee next day receipt. All delivery prices and lead times quoted on the web site are for mainland UK only and when delivered between 9.00am and 5.30pm Monday to Friday.
ADDITIONAL DETAILS
Extra charges will apply for premium deliveries. Orders which include several products with varying lead times will be dispatched when all parts of the order are in stock unless otherwise arranged. Delivery rates are stated per item (ex VAT) for mainland UK during business hours. Delivery charges and free delivery offers apply to mainland UK only.
Excluded areas include the Highlands and Islands of Scotland, Northern Ireland, Isles of Scilly, Isle of Man and the Channel Islands. For deliveries to these destinations, and to other European destinations including the Republic of Ireland, please contact us for a quotation. For orders below £100 (ex VAT) delivery is charged at £4.95 (ex VAT).
Technical Specification
| Accuracy: | ± 1.5 mm *** |
| Indoor range: | 0.05 – 100 m *** |
| Laser class | 2 |
| Laser type | 635 nm, <1 mW |
| Protection class | IP65 (dust tight and jet water protected) |
| Drop tested | 2 m height |
| Data interface* | Bluetooth® v6.0 range up to 10m |
| Free Apps* | DISTO™ Plan app for iOS and Android DISTO™ transfer for Windows |
| Batteries | 2 x AAA |
| Dimensions | 125 x 53.5 x 25.5 mm |
| Weight (with batteries) | 129 g/ 4.55 oz |
| Memory | Up to 30 measurements |
| Runtime | Up to 14 hours |
* favourable conditions: white and diffuse reflecting target (white painted wall), low background illumination and moderate temperatures.
** unfavourable conditions: targets with lower or higher reflectivity or high background illumination or temperatures at the upper or lower end of the specified temperature
range.
*** Tolerances apply from 0.05 m to 10 m with a confidence level of 95%. Above 10 m the tolerance may deteriorate according to the values given in the manual of the unit.
